The Short Answer: Drain tile is a subsurface drainage system installed around a foundation’s perimeter to divert excess groundwater away from your home and prevent water damage. The system consists of a perforated pipe surrounded by gravel and is available in both exterior (installed outside the foundation) and interior (installed inside the crawl space or basement) configurations.
If you’ve noticed a soggy backyard after heavy rainfall or a damp, moldy crawl space, these are signs that there may be poor drainage around your home. Drain tile systems provide effective water removal from your property and can be especially beneficial in areas with high groundwater levels.
What is Drain Tile?
Drain tile is a subsurface drainage system installed around the perimeter of a foundation at the footing level to divert excess water away from your home. The system typically includes a perforated pipe surrounded by gravel, which allows the water to flow into the pipe and toward a drainage ditch.
If you live in a wet area, drain tile is a critical element in preventing water damage to your home and can provide peace of mind during heavy rainfall or flooding. However, tile drainage can be used with various soil conditions.
For more information, see Is Water in a Crawl Space After Heavy Rain Normal?
How a Drain Tile System Works
A drain tile system is designed to prevent water seepage in your crawl space or basement by stopping the water table from building up in the ground around your foundation. This system consists of a gravel-lined trench, a perforated pipe, a sump pit, and a sump pump. Excess groundwater flows into the drain tile pipe and gets diverted away from your foundation by the sump pump.
While it may seem complicated, a drain tile system is a simple and effective way to keep crawl spaces or basements dry and homes safe from water damage.
Exterior Drain Tile Systems

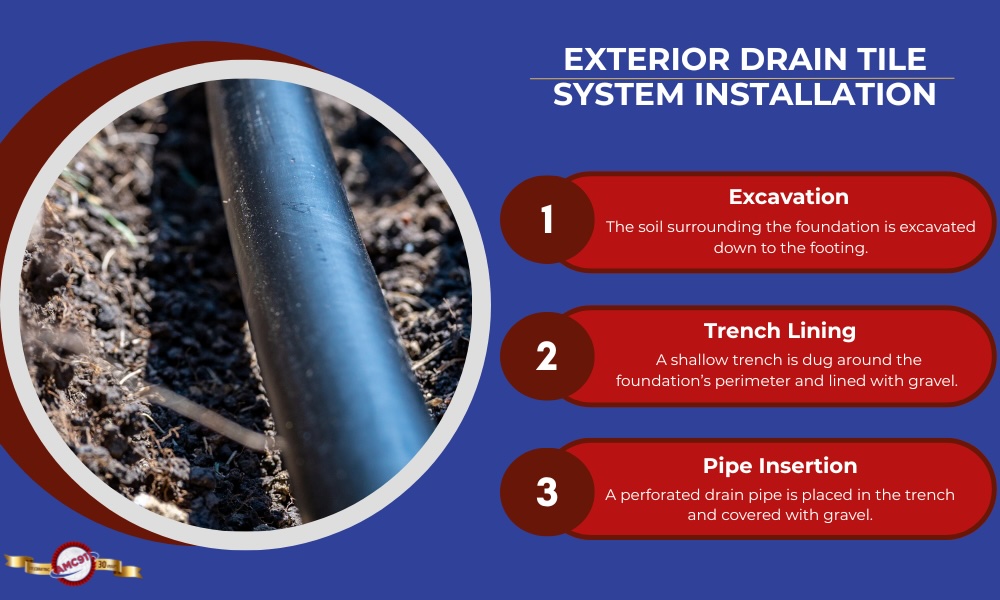

An exterior drain tile system is installed around the perimeter of your home’s foundation at the footing level. The general installation process is as follows:
- The soil around the foundation is excavated down to the footing.
- A shallow trench is dug around the perimeter of the foundation and then lined with gravel.
- A perforated drain pipe is placed into the trench and then covered with more gravel.
- The excavated soil is replaced.
Now, groundwater will find its way into the pipe and get directed toward a sump pit. When the sump pit fills with water, a sump pump will turn on and release the water a safe distance from the foundation.
While an exterior drain tile system may seem like a hassle to install, the benefits far outweigh the initial cost and effort. With an exterior drain tile system, you can rest assured that your home is protected from water damage and the costly repairs that come with it.
Interior Drain Tile Systems

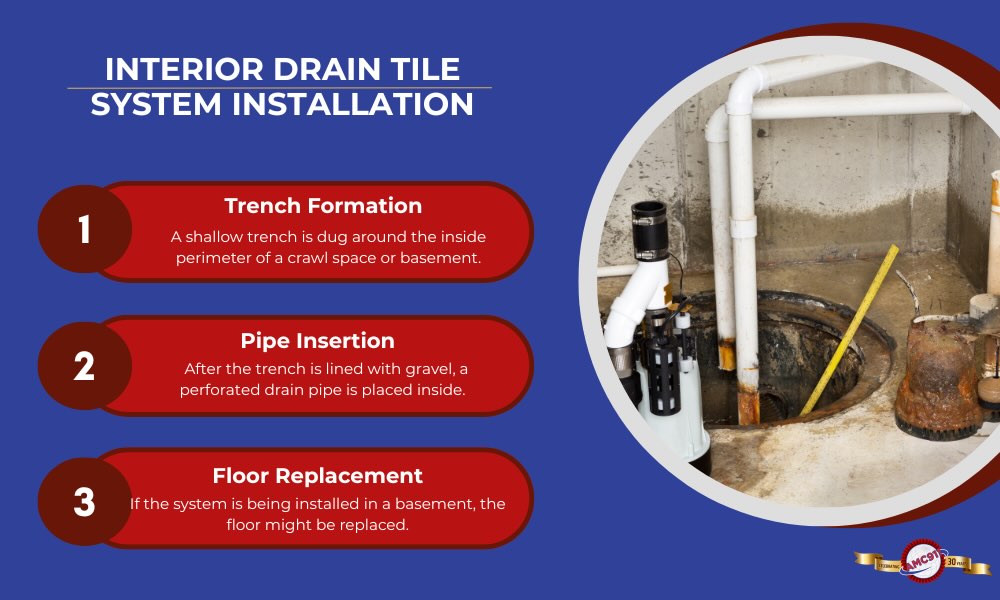

An interior tile drainage system is installed around the inside perimeter of a crawl space or basement. The general installation process follows these steps:
- A shallow trench is dug around the inside perimeter of the crawl space or basement and lined with gravel.
- Installing an interior drain tile system in a basement means tearing up the floor to dig the trench.
- A perforated drainage pipe is placed into the trench and covered with more gravel.
- If an interior drain tile system is being installed in a basement, the floor may or may not be replaced. It depends on whether the basement will be finished.
Any excess moisture in the soil will now flow into the perforated pipe and get channeled toward a sump pit. When the pit fills with water, a sump pump will kick in and expel it away from the foundation. For added protection, these systems are sometimes paired with French drains.
How Much Does A Drain Tile System Cost?
The cost of a drain tile system will vary depending on the size and layout of your home, the type of drain tile system you choose (exterior or interior), and whether you need any additional services. While a drain tile system is a significant investment, you’ll have peace of mind knowing your home is protected from water damage and potential costly repairs.
Do You Already Have a Drain Tile System?
Do you have a sump pit with a drainage pipe coming into it? If so, you probably already have a drain tile system installed. However, you might not know whether it’s working correctly.
Does your crawl space or basement remain dry even after heavy rain? If you’re unsure, contact an experienced foundation repair contractor and ask for an inspection.
Do I Really Need a Drain Tile System?
Not every home needs a drain tile system. For example, you probably don’t need a drain tile system if you live in an arid region with dry soil types. However, if you live in an area prone to heavy rain or if you’ve experienced water damage in the past, you could definitely benefit from a drain tile system.
A drain tile system doesn’t cost much to install in a new home. In fact, it may even be required in your area. A tile drain can also be an attractive buying feature, so you might want to consider an installation if you’re planning to sell your house.
If you’re unsure if you need tile drainage, an experienced contractor can help you evaluate your situation and recommend the best course of action to protect your home from water damage.
